VS1520A

HIGH PRECISION SCREEN PRINTER

Aurel VS1520A uses highly advanced mechanical and electronic solution to guarantee superior quality in fine-line printing for multilayer hybrids circuits.

The automatic vision system ensures resolution better than 2 microns.

All the machine’s movements are motorized and programmable by S/W through an user friendly menu.

All the print parameters (pressure, speed, down stop, print gap) are programmable and storable in work recipes to grant the minimum setup time.

VIDEO DOWNLOAD ENQUIRY

DETAILS

APPLICATIONS

AUREL VS1520A is a free standing high precision screen printer with cabinet and security cover that can print area up to 400 x 300 mm, assuring uniform deposition from corner to corner.

Some applications for electronic and general industrial purposes are:

Thick film and polymer pastes
Multilayer Hybrids
Solder paste for SMT
Glues, adhesives, resins
Through holes metallization
Solder resist
Flexible foils, PET film, paper
Solar cells, semiconductors, glass, quartz
Polymeric pastes LTCC and Via Filling
Silver Sinter
Heaters on metal substrates

USER-FRIENDLY INTERFACE WITH TOUCH SCREEN MONITOR

USER-FRIENDLY INTERFACE WITH TOUCH SCREEN MONITOR

CONTROL SYSTEMS

The machine is PC controlled and allows a great deal of flexibility on all functions Windows © Operating System
Wide Touch screen monitor with user friendly interface
Print and flood, alternating print and after print delay
Programmable print parameters (printing stroke, pressure, print gap & down stop)
Machine diagnostic
Machine hood & lifting and locking safety switches
Work recipes storing and data logging

HEAD

The intelligent head on high precision slides represents the latest state-of-the-art design with motorized and programmable axes for fine teaching and adjustment of parameters. High sensitive squeegee for fine-line printing, low pressure, constant angle, no vibration
DC motor driven head allows smooth movement and precise speed & stroke adjustment in both directions
Configurable head, single squeegee, double squeegee, squeegee and flood blade
Motorized and programmable screen Z axis for screen height and slow snap-off function – very important for fine line printing

INTELLIGENT DOUBLE SQUEEGEE HEAD

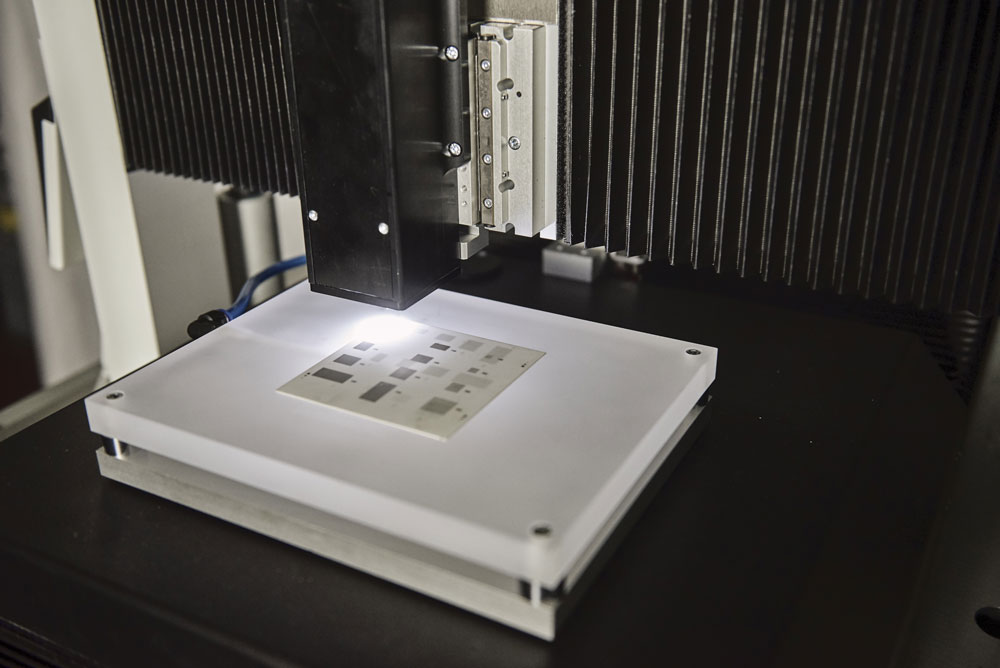

AUTOMATIC VISION SYSTEM

VISION

The vision camera is mounted on a X axis with linear motor. The movement on this axis and the movement of the table in the Y-axis cover the complete substrate area.

This allows to look at the fiducial marks, the vias or a pad wherever they are placed on the substrate.

A special optic and IR lighting system is integrated in the TV-camera assembly. Room lighting or PCB colours no longer influence the reliability of the vision system.

The vision system is PC based with a very advanced software for easy teaching and automatic adjustment of all parameters and values.

WORK TABLE

High precision fast linear motors. Alignment on the X-Y and Theta axes between screen and substrate
Substrate hold down by vacuum, Venturi ejector included. Vacuum detector for substrate presence and chamber sensor
Easily exchange different fixtures according to the substrate size: acrylic or aluminium nest, micro porous stone, multi-holes chuck, universal table for PCBs

MICRO POROUS TABLE FOR FLEXIBLE SUBSTRATE & GREEN TAPE

MICRO POROUS TABLE FOR FLEXIBLE SUBSTRATE & GREEN TAPE

SPECIFICATIONS VS1520A

FEATURES
Max print area	400 x 300 mm
Max substrate size	450 x 350 mm
Max squeegee width	320 mm
Max Screen size	15″ x 20″ (option 21″ x 21″)
X-Y adjustment	± 12 mm
Z adjustment (screen height)	± 10 mm
Theta adjustment (rotation)	± 3°
Print stroke	50 ÷ 480 mm
Squeegee speed	0 ÷ 300 mm/sec
Squeegee pressure	0 ÷ 16 Kg (more on request)
Printing capacity	10 ÷15 sec + print time

ACCURACY
Table X axis resolution	0.001 mm
Table Y axis resolution	0.0001 mm
Table theta axis resolution	0.001°
Squeegee and screen parallel	± 0.01 mm/100 mm
Total system repeatability	± 0.012 mm

VISION SPECIFICATION
TV camera axis resolution (X1 axis)	0.0001 mm
Vision system repeatability	± 0.001 mm
TV camera field of view	Min. 2 x 1.5 – Max. 8 x 6 mm
Fiducial dimensions	Min. 0.2 x 0.2 – Max 3 x 3 mm

DIMENSION & UTILITIES
Dimensions	1440W x 1350L x 1700 H mm
Approx. weight	700 Kg
Compressed air supply	5 Ate – 50 Nl/min MIN
Power supply	220V – 50 Hz – 10A

AUTOMATIC PASTE DISPENSING SYSTEM

OTHER OPTIONS

Paste Reload Dispenser
PHM, Programmable Holes Metallization and VIA filling
Substrate cleaning via roller contact, air knife, ionizer bar Led UV LAMP
Bar code reader
Pneumatic screen locking
PPI, Post Print Inspection
Climatization system
Automatic stencil cleaning (only for stencil)
Automatic handling system
Special handling for Green Tape (LTCC - HTCC) and other flexible substrates
