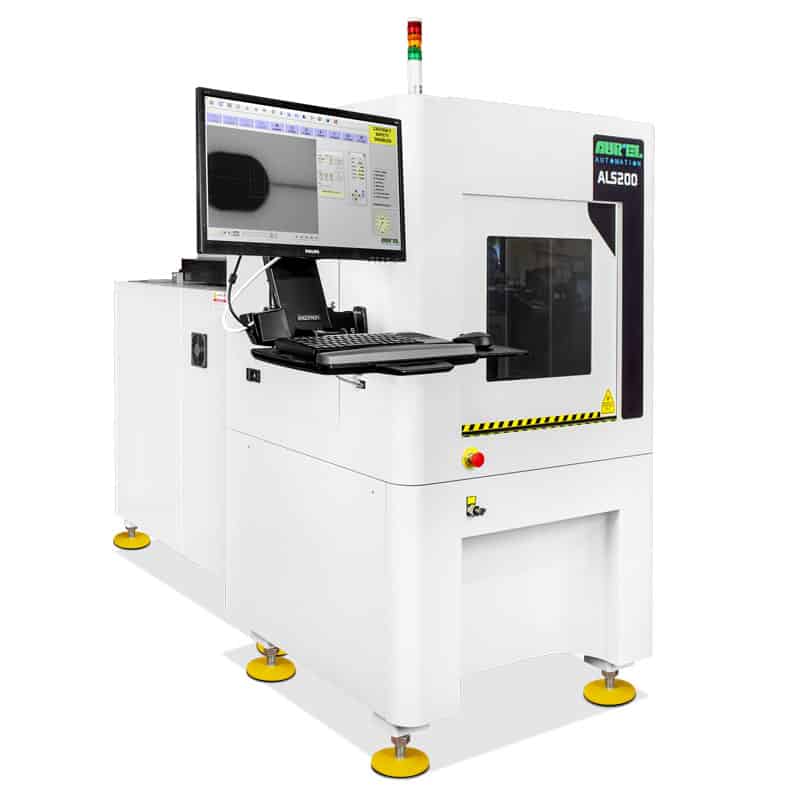

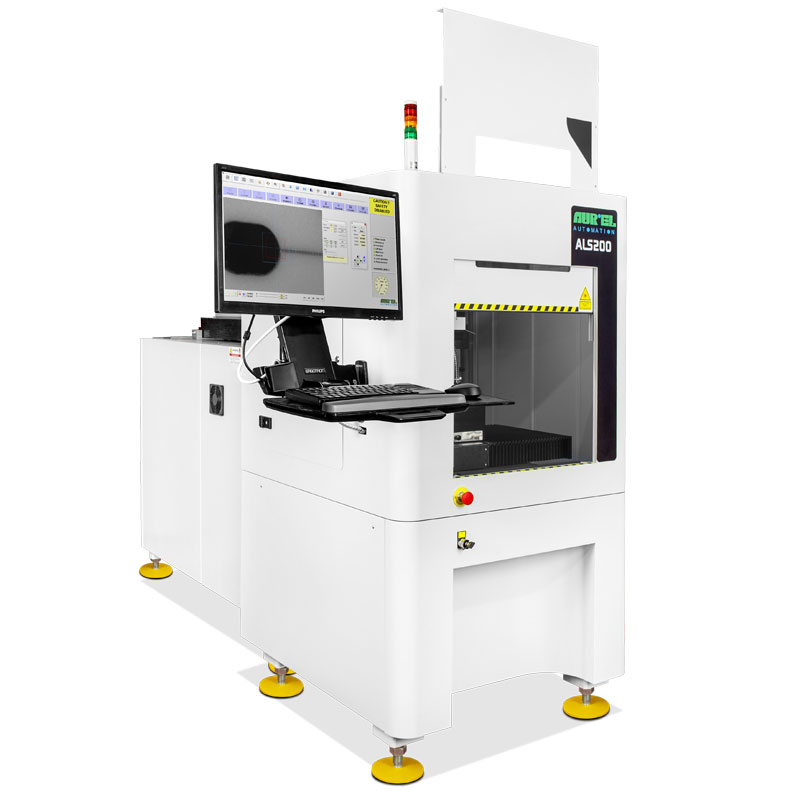

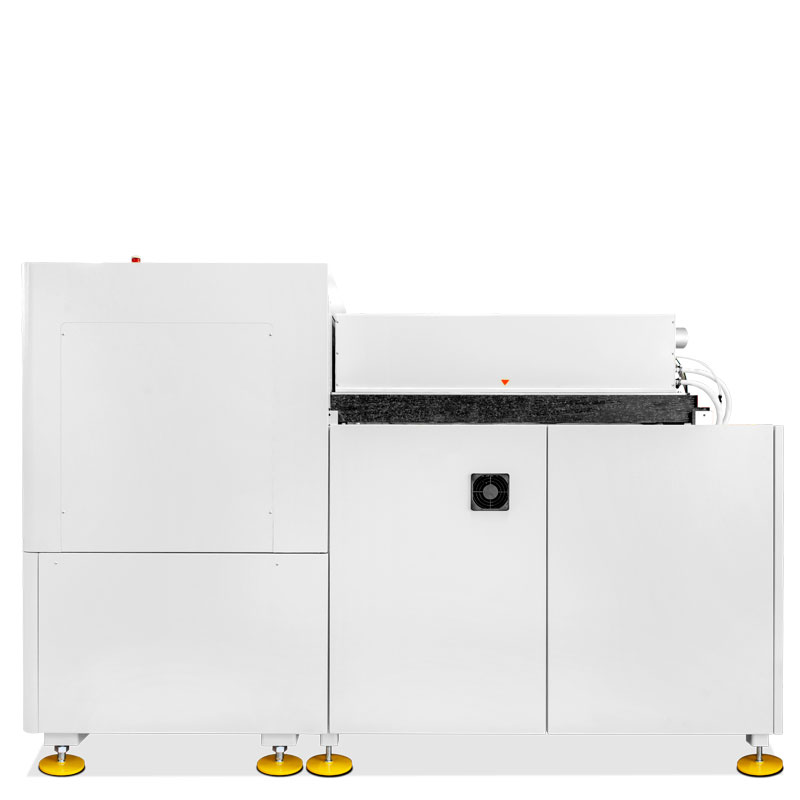

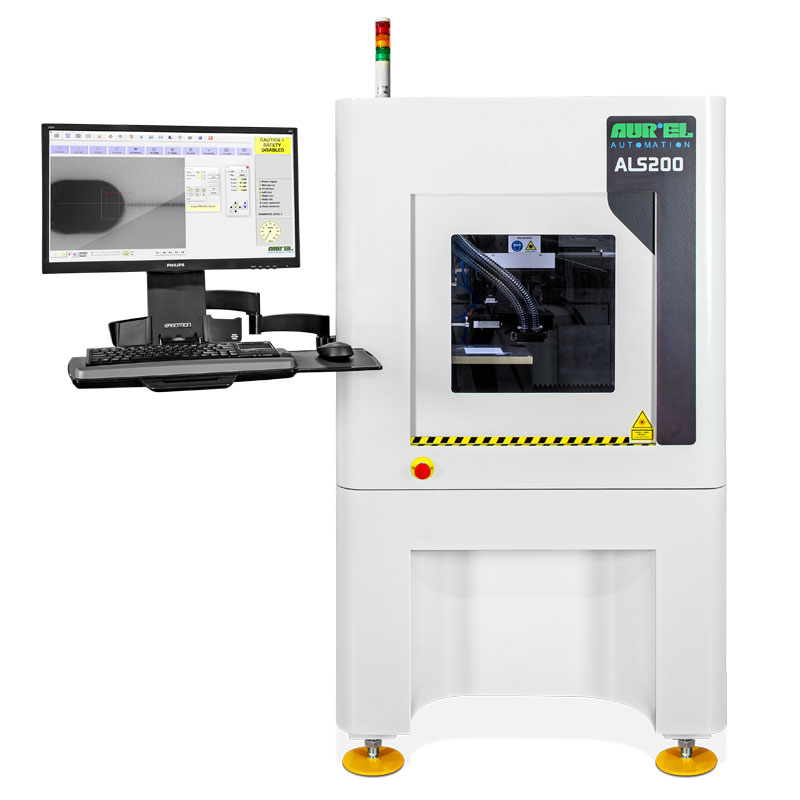

ALS200

CO₂ LASER SYSTEM

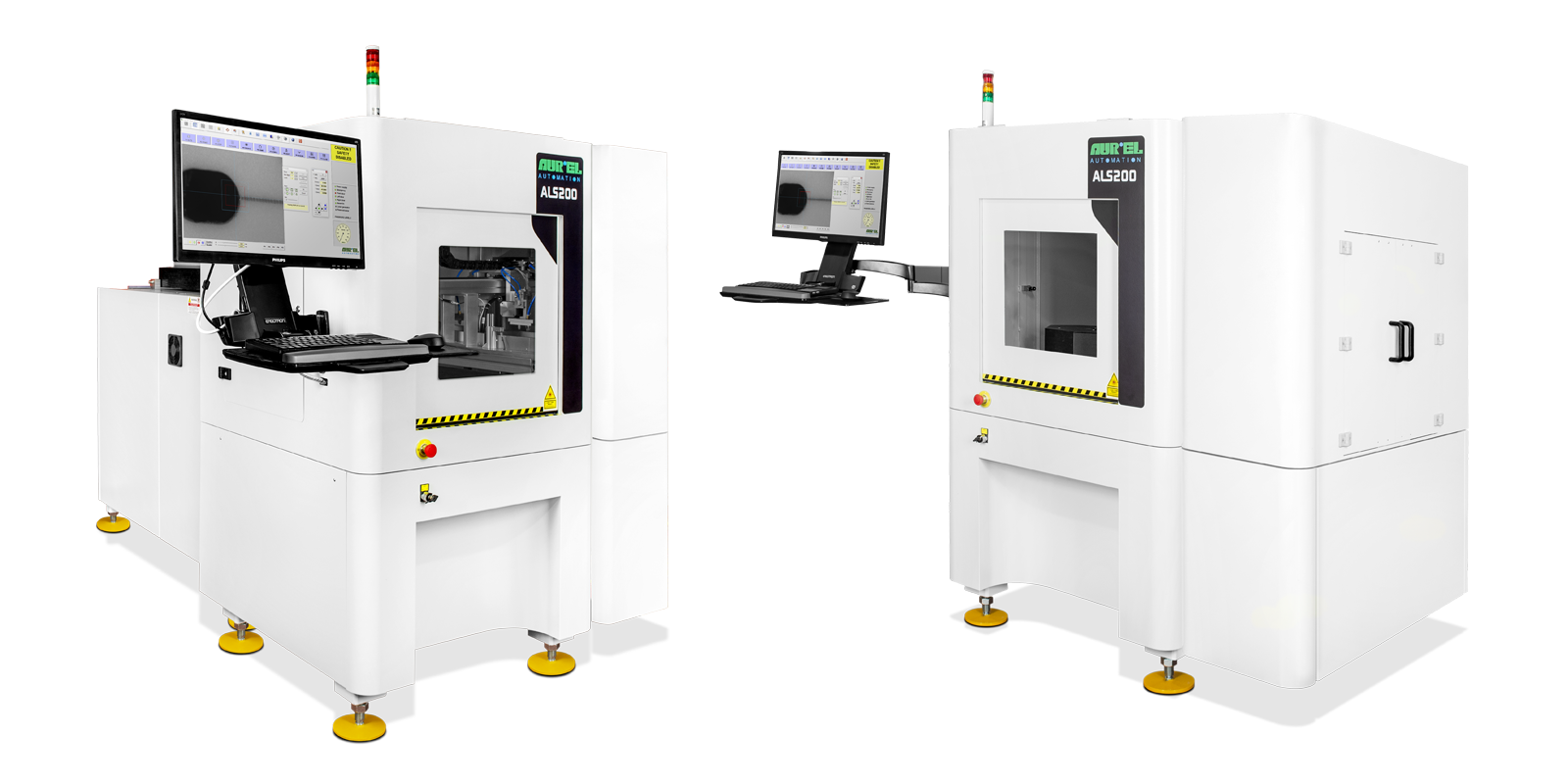

Aurel ALS200 CO₂ Laser System is designed for high accuracy scribing, drilling and cutting of ceramics substrates for thin and thick film hybrid circuits up to 6″ x 6″ (typical Al₂O₃ and AIN).

The System is equipped with double nozzle (automatic switching): one for cutting and one for scribing.

ALS200 lasers are offered as basic system or with optional handling modules from/to stack or cassette magazine for high volume production.

DOWNLOAD PDF REQUEST INFO

DETAILS

APPLICATIONS

Some applications for electronic and general industrial purposes are:

Cutting
Cutting of ceramic substrates
Scribing

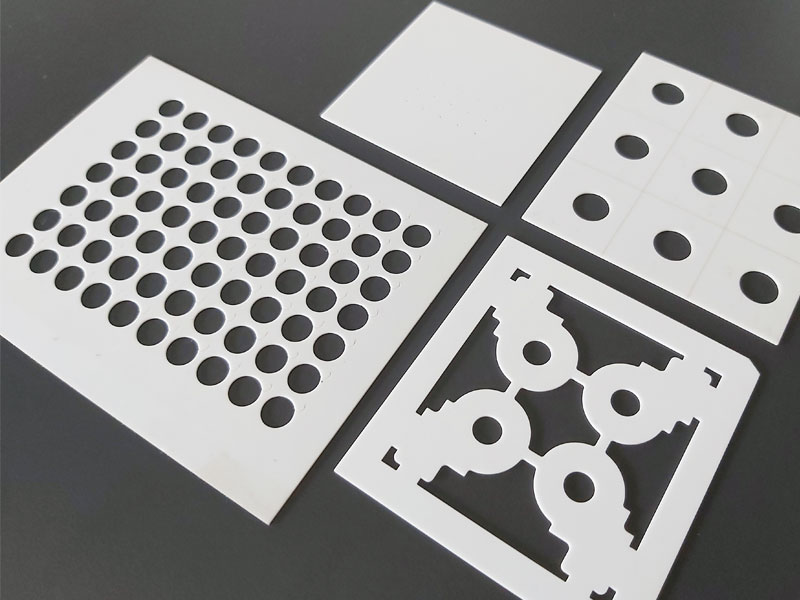

Scribing of ceramic substrates
Drilling
Drilling of ceramic substrates

CONTROL SYSTEMS

The machine is PC controlled and allows a great deal of flexibility on all functions
Windows © Operating System
Wide screen monitor and industrial keyboard
Menù program for cutting, drilling and scribing (linear and circular interpolation)
Machine diagnostic
Machine hood & lifting and locking safety switches
Work recipes storing and data logging

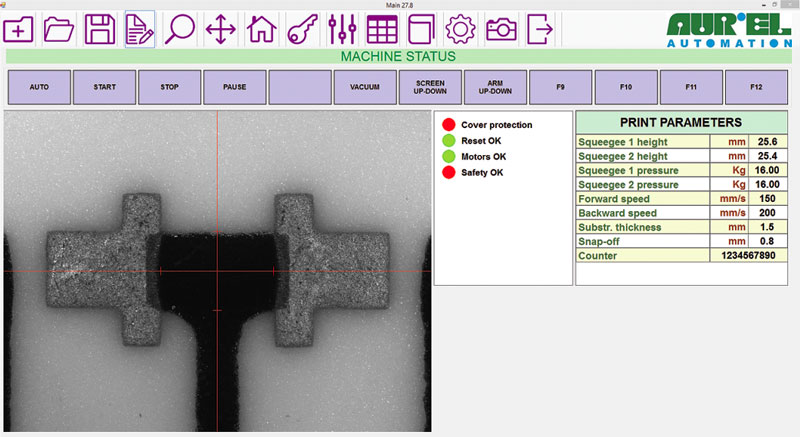

USER-FRIENDLY INTERFACE WITH TOUCH SCREEN MONITOR

USER-FRIENDLY INTERFACE

CO₂ LASER SOURCE

HEAD

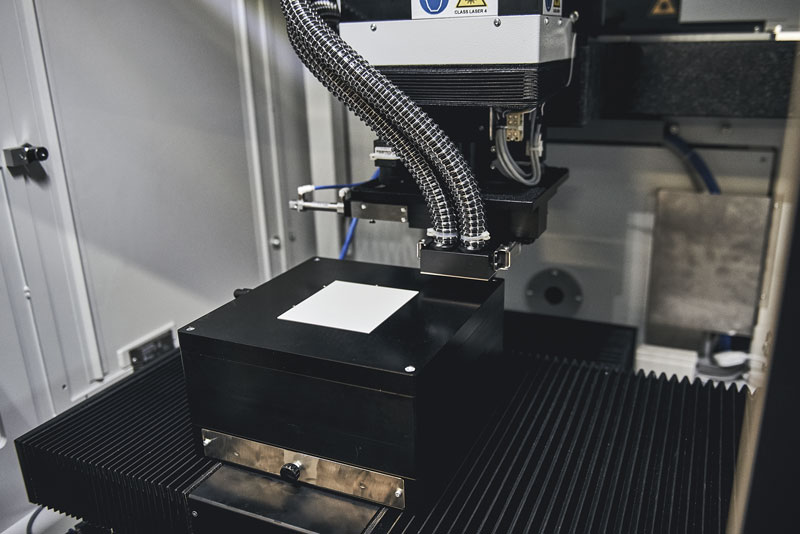

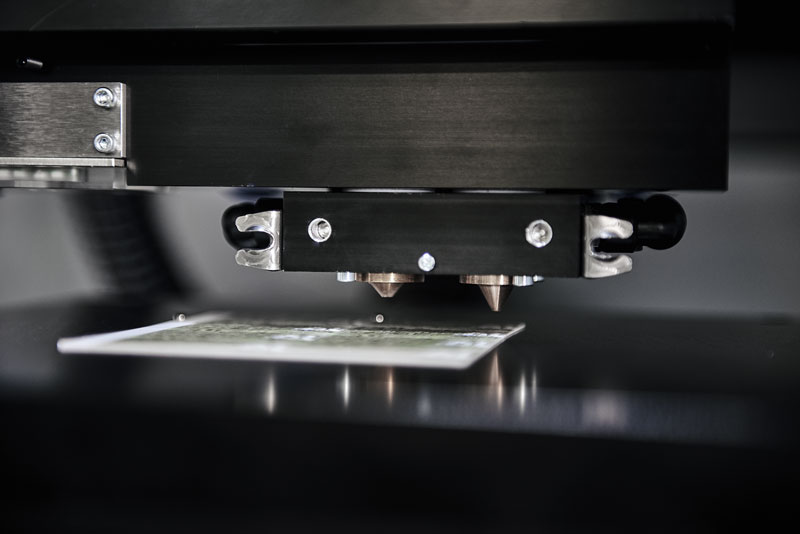

One fixed head with double nozzle
Motorized focus to adjust the Z-axis according to the substrate thickness
High resolution Camera for work area vision with crosshair for manual alignment of the substrates

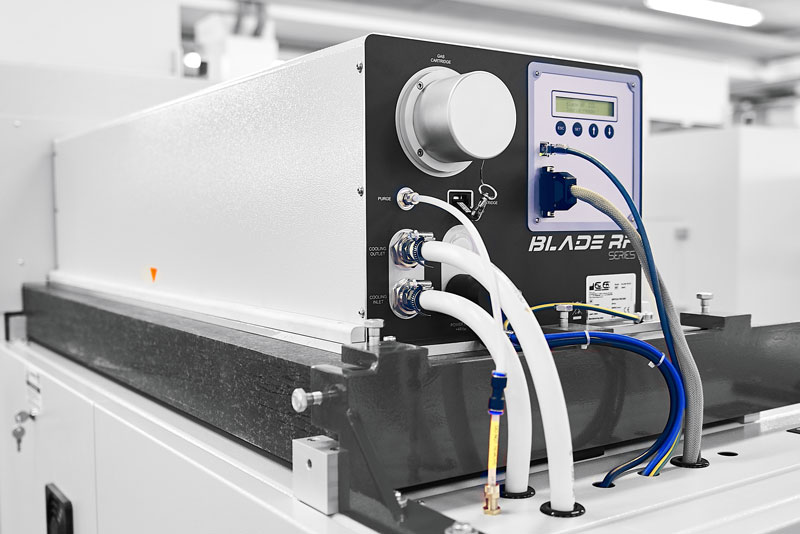

LASER SOURCE

High power semisealed CO Laser 350-1000W type 2 RF333
Gas CO plasma tubesmounted on a frame with a 2 granite plane to ensure high output power stability
RF excitement technology, high peak power, high frequency modulation, compactness
Factory service free with easy gas cartridge replacement
Frequency and pulse width programmable and real-time controlled by the electronic control

DOUBLE NOZZLES HEAD

AUTOMATIC LOADING/UNLOADING

OTHER OPTIONS

PRS Vision System for automatic substrate alignment
Water chiller (stand alone)
Exhaust aspiration and filtering

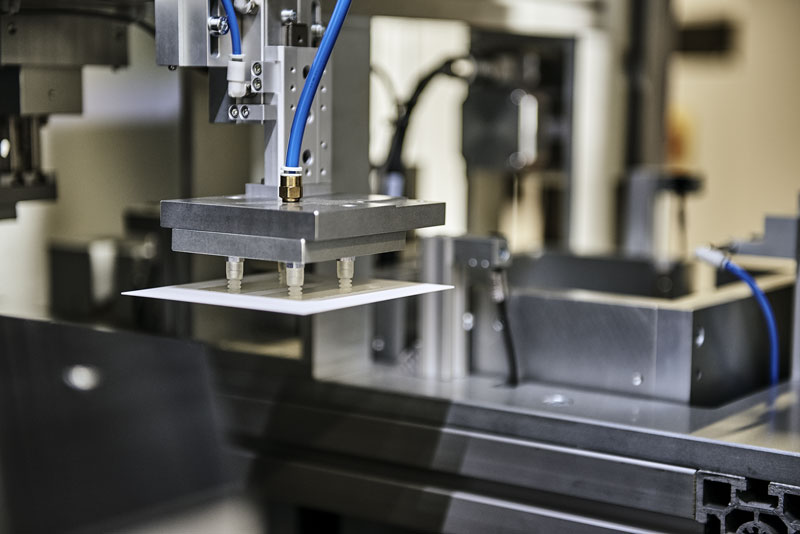

Automatic loading/unloading system from magazine for substrate up to 6”x6”, two stack magazines, one for loading, one for unloading

SPECIFICATIONS ALS200

FEATURES LASER GENERATOR
Weavelength	10.6 µm
Rated Power	350W (Continuous mode)
Peak Output power	850 W
Power stability (long term)	±4%
Mode quality	1.1 M2
Pulse width range	2÷1.000 µs
Pulse frequency	Up to 50 KHz
Gas mix consumption	<24 Nl/year (cartridge)
Heat dissipation	5 kW max

X-Y TABLE
X-Y Linear drive work table
Optical linear encoders
Stroke	300 x 300 mm
Speed	Up to 500 mm/s
Resolution	0.1 µm
Accuracy	±5 µm
Repeatability	±4 µm
Max substrate size	6” x 6”
Max thickness (AL₂O₃)	Up to 2 mm
Standard cutting speed	4÷7 mm/s
Standard scribing speed	100÷200 mm/s

DIMENSIONS & UTILITIES
Dimensions*	980W x 2620L x 1800H mm (with manual loading) 1460W x 2620L x 1800H mm (with loader/unloader)
Weight	1500 Kg (with manual loading) 1700 Kg (with loader/unloader)
Compressed Air Supply	5 bar, consumption: 100 Nl/min
Power	230V, 1ph, 50 Hz
Exhaust flow rate	approx. 3 m3/min; 1500 mm H2O
Cooling water	20±1°C; flow 10±12 l/min (Optional water chiller)
