A206

CONVEYOR DRYING/CURING OVEN

AUREL A206 is a conveyor oven for drying thick film pastes and curing polymeric pastes, adhesives, resins, glues etc.

Far IR heating is the recommended way to dry and cure properly printed wet pastes, especially for thick film circuits.

Indeed, infrared heat waves penetrate first the core of the material, then dry outwardly to the surface, avoiding the typical “Dried skin effect” that can trap the solvents inside causing cracks in the further steps of the process.

VIDEO BROCHURE ENQUIRY

DETAILS

APPLICATIONS

Some applications for electronic and general industrial purposes are:

Thick film circuits
Adhesives and coatings
Resins and glues
Polymeric pastes

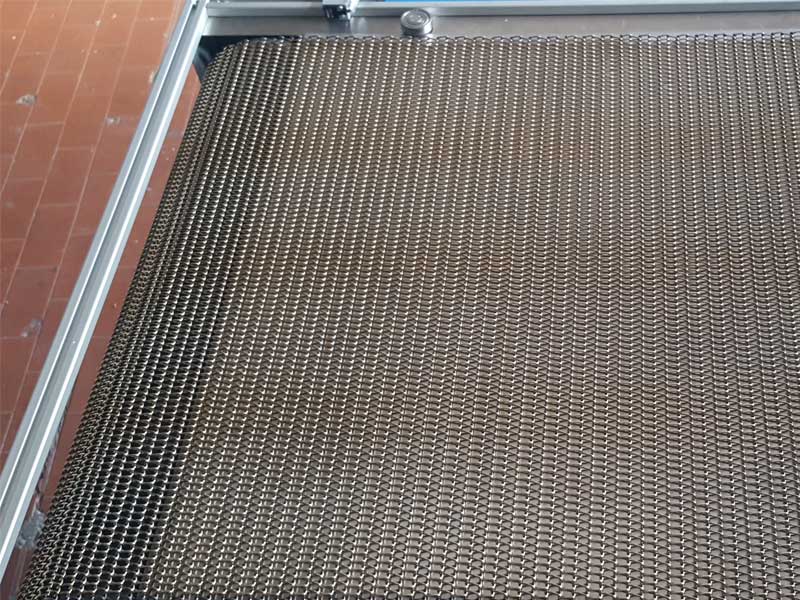

STAINLESS STEEL BELT

MAIN FEATURES

The oven is controlled by a digital thermo-regulator
The conveyor speed is controlled up to 225 m/min
The muffle is made of stainless steel
Venturi system with adjustable for controlled exhaust and input curtains
Heating with ceramic panels 50% convection type and 50% for IR

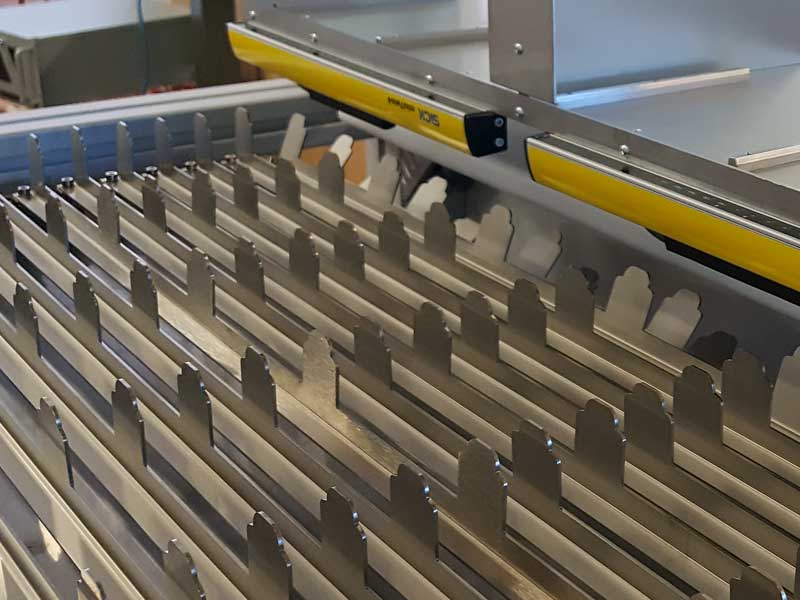

Conveyor belt: Stainless steel, silicon, teflon/glass, special finger for double side printed substrates

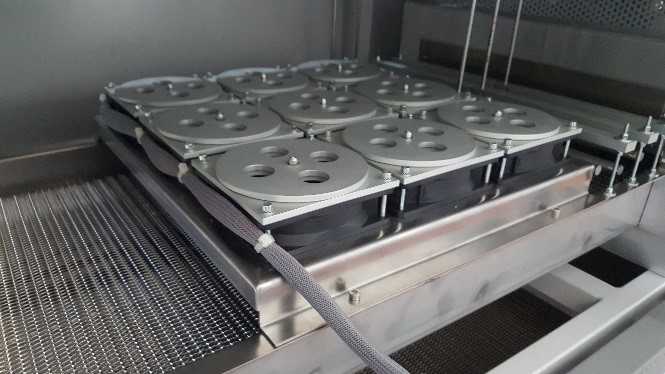

CENTRIFUGAL FANS TO COOL DOWN THE PARTS

OTHER OPTIONS

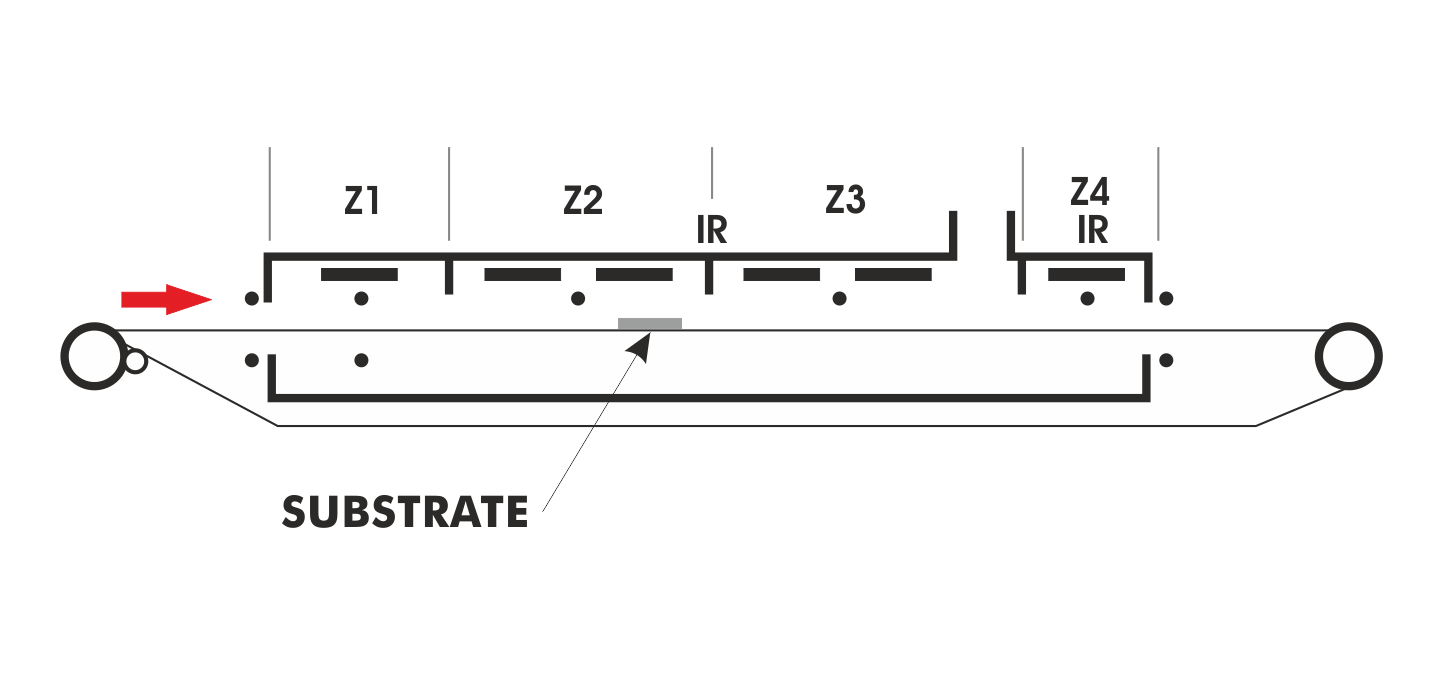

More zone
Centrifugal Funs to cool down the parts
Conveyor cleaning water and ultrasonic system
Temperature profiler
Stand Alone Exhaust aspirator and filtering
Sensor at the exit of the dryer with acustic and light warning
Custom size of buffer & muffle
Automatic Loading/Unloading
